Biaxial carbon fibre cloth 100 gr/m2
- Very high strength and stiffness

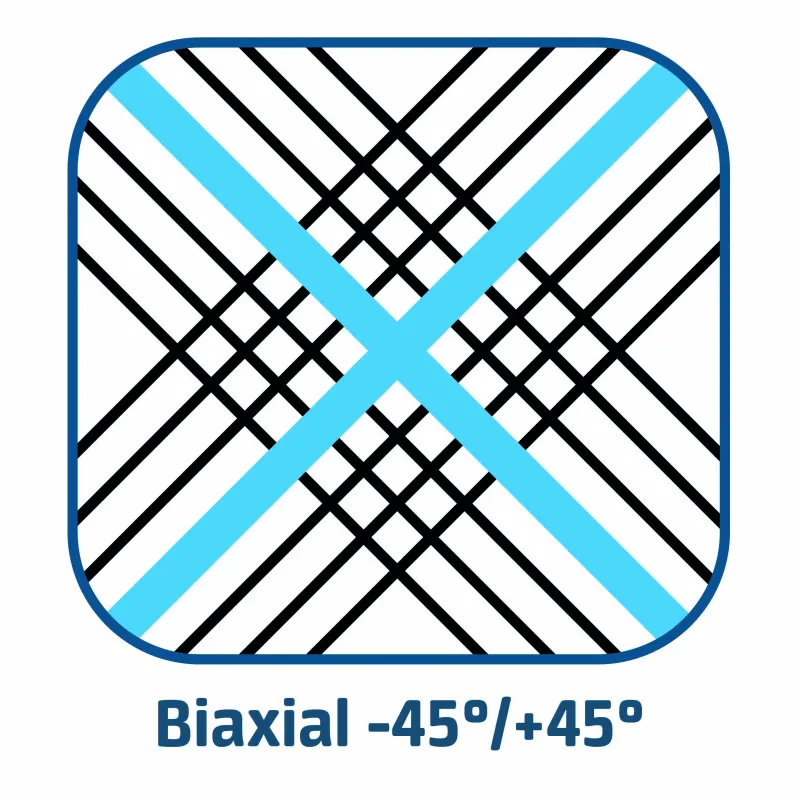

- Biaxial (45°)
- Layer thickness: approx. 19 mm
Biaxial carbon fibre cloth 100 g/m² is a lightweight structural carbon material composed of two layers of unidirectional carbon fibres oriented at an angle of ±45° to each other. This biaxial construction ensures efficient load distribution, resulting in an excellent combination of stiffness, strength and low weight.
This carbon fabric is particularly suitable for applications where the material is subjected to tensile, compressive and bending loads. Thanks to the straightened fibres, the fabric contains virtually no internal stresses, contributing to optimal mechanical performance. In addition, the fabric is highly flexible and easy to drape, allowing it to be applied smoothly and without wrinkles to complex shapes and double-curved surfaces.
Applications
Biaxial carbon fibre cloth 100 g/m² is widely used in high-performance, lightweight constructions, including:
- Reinforcement of boat hulls and decks.
- Body panels and structural components.
- Aerospace and automotive applications.
- Model making.
- High-performance sports equipment.
A key advantage of the biaxial fibre orientation is that torsional reinforcement layers can be applied in a single operation, making this material highly efficient in structural laminates.
Processing
For optimum mechanical properties, the use of epoxy resin is recommended. For decorative applications or cosmetic layers, the carbon fabric can also be processed with polyester resin. The material is suitable for various processing methods, such as:
- Hand lay-up.
- Wet bagging.
- Vacuum infusion.
Thanks to its flexible structure, this carbon fabric is easy to process, even around curves and complex shapes.
Resin consumption
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.19 mm | approx. 122 gr/m2 |
| Wet Bagging | 0.16 mm | approx. 99 gr/m2 |
| Resin Infusion | 0.16 mm | approx. 91 gr/m2 |
Specifications
Packaging: roll
Weight: 100 gr/m2
Width: 127 cm
Structure: biaxial (±45°)
Dimensions:
- 1.27 x 1 linear metre (1.27 m2)
- 1.27 x 3 linear metres (3.81 m2)
- 1.27 x 5 linear metres (6.35 m2)
- 1.27 x 10 linear metres (12.70 m2)
- 1.27 x 25 linear metres (31.75 m2)
- 1.27 x 50 linear metres (63.50 m2 full roll)
We have a number of recommendations for working safely with polymers. At Polyestershoppen you will not only find the polymers themselves, but you can also purchase all the protective equipment you need from us. If you have any doubts or questions, please contact our customer service. We can give you advice on how to work safely with polymers.
