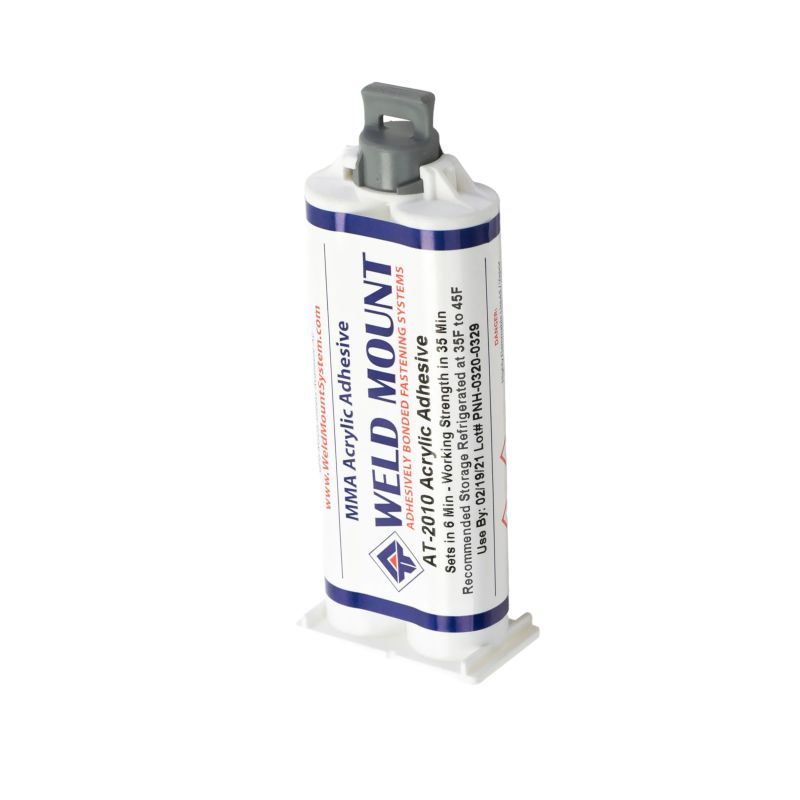

Weld Mount AT-2010 Methacrylate Adhesive
At a glance
- Ultra-fast curing
- High gap-filling capability
- Bonds to many materials
Looking for a structural adhesive that is incredibly strong and cures exceptionally fast? Weld Mount AT-2010 is a high-performance two-part methacrylate adhesive (MMA) specifically developed for the structural bonding of a wide range of plastics, metals and composites. Thanks to its high viscosity, the adhesive stays exactly where it is applied without sagging, allowing Weld Mount fasteners to be positioned with ease.
What truly sets AT-2010 apart is its exceptional speed. With a working time of just 3 to 4 minutes and a fixture time of only 5 minutes, it is the ideal adhesive for demanding production schedules. An impressive 75% of its ultimate bond strength is achieved within just 15 to 20 minutes. In addition, this adhesive performs exceptionally well in challenging environments. It withstands extreme temperature fluctuations (from -54°C to 121°C) and offers excellent chemical resistance.
Benefits of Weld Mount AT-2010
- Ultra-fast curing. Reaches 75% of its ultimate bond strength in just 15 to 20 minutes.
- Excellent gap-filling properties up to 9.5 mm.
- Bonds exceptionally well to metals, thermosetting plastics and thermoplastics.
- High viscosity formulation designed to prevent sagging during application.
- Excellent impact and weather resistance.
Suitable substrates
Weld Mount AT-2010 is suitable for bonding the following materials:
- Aluminium
- Steel
- Stainless steel
- Fibreglass
- Gelcoat
- Epoxy
- Polyurethane
- Acrylic
- ABS
- Polycarbonate (PC)
- Nylon
- PPO
- Vinyl
- PVC
- SMC
Technical specifications
Adhesive type: methacrylate
Colour: light yellow
Packaging: 50 ml
Mix ratio: 1:1
Specific gravity: 1.04 g/cm³
Shear strength: 18–24 MPa
Gap-filling capability: 9.5 mm
Working time: 3–4 minutes
Fixture time: 5 minutes
75% of ultimate strength: after approx. 15–20 minutes
Full cure: after 24 hours
Temperature resistance: -54 °C to 121 °C
Optimal application temperature: 18 °C to 27 °C
Shelf life: 6 months when stored at 20 °C. When refrigerated, the shelf life is up to 12 months.
Applicator gun: LS50-1
Mixing nozzles:
Product properties
The key technical properties clearly listed in one place.
- Article number
- LIJ002346
-
Open time is the period during which an applied adhesive, sealant or mortar can still be assembled, positioned or adjusted. It is usually given in minutes under specified conditions, often around 20 or 23 °C. Open time generally starts at application and may differ from the working time after mixing.
- 1 tot 10 minuten
- Colour
- Lichtgeel
-
Heat resistance describes the temperature a material can withstand after correct processing and curing, usually expressed in degrees Celsius (°C). Continuous exposure is different from a brief temperature peak, and mechanical loading may also affect the limit. Heat resistance is not the same as the temperature at which the product can be applied.
- -54 to 121 °C
-
Adhesive type describes the family of adhesive or sealant, such as epoxy adhesive, (methyl)methacrylate adhesive, polyurethane adhesive or polymer sealant. Its chemistry affects processing, curing, flexibility and adhesion. Products of the same type may still differ, so check the suitable substrates and application instructions.
- Methyl Methacrylaatlijm
-
This property lists the substrates on which an adhesive, resin or coating can achieve strong adhesion according to the product information. The result also depends on surface preparation.
- Cleaning and degreasing: removes dirt, oil and other substances that interfere with bonding.
- Sanding or roughening: can improve adhesion when suitable for the substrate.
- Primer: required or recommended for some surfaces.
Materials such as PE, PP and PTFE are difficult to bond with many conventional adhesives and may need a specialist adhesive or pretreatment. If in doubt, test adhesion on a small area.
- Aluminium, Staal, Roestvast staal (RVS), Polystyreen, PVC, ABS, Koolstof/Epoxy (CFRP), Nylon (PA), Plexiglas (PMMA), Polycarbonaat (PC), SMC
-
The recommended application temperature range indicates the conditions under which the product can generally be applied and cured properly. Three temperatures matter:
- Air: the temperature in the workshop or outdoors.
- Substrate: the temperature of the surface being treated.
- Product: the temperature of the resin, adhesive or coating itself.
A cold substrate can cause condensation and affect adhesion. At higher temperatures, two-component products may react faster, reducing their working time. Check the dew point and follow the product instructions.
- 18-27 °C
-
Shear strength indicates how much stress a bonded joint can withstand when forces try to slide the joined parts parallel to the bond line. It is usually expressed in MPa (megapascals) or N/mm² (newtons per square millimetre): 1 MPa = 1 N/mm². A value of 20 MPa therefore represents a test stress of 20 N/mm². Substrate, overlap, adhesive thickness and test conditions affect the measured strength.
- 18-24 MPa
-
Density describes the mass of a material per unit volume. Values may be given in g/cm³, kg/L or kg/m³; 1 g/cm³ equals 1 kg/L. For example, one litre of a liquid with a density of 1.2 kg/L weighs approximately 1.2 kg. Density helps convert between weight and volume, but it can vary with temperature.
- 1.04 kg/L
-
The period for which an unopened product remains usable under the specified storage conditions. Check whether the period starts from the manufacturing date or another date. Shelf life may be shorter after opening, especially for products sensitive to air or moisture.
- 6 months (at 20 °C; maximum 12 months refrigerated)
-
Gap-filling capability describes how wide a gap or joint an adhesive or sealant can bridge, usually in millimetres (mm). The stated maximum is not necessarily the recommended adhesive layer thickness: a narrower joint may be needed to achieve good bond strength.
- 9.5 mm
-
Curing time is the period a product needs to reach a specified stage of cure. It is usually given in hours or days, often at a reference temperature such as 20 °C. A product may be tack-free or safe to handle before reaching its full mechanical and chemical resistance. Film thickness and mixed quantity may also affect the time.
- 1 day
- Net contents
- 50 ml
-
Working time is the period during which a product remains workable after mixing or activation, usually given in minutes at a specified temperature, often 20 °C. With reactive resins, the chemical reaction also continues in the mixing container, and larger quantities or higher temperatures can shorten this time. Working time is different from gel time and full curing time.
- Approximately 3-4 minutes
