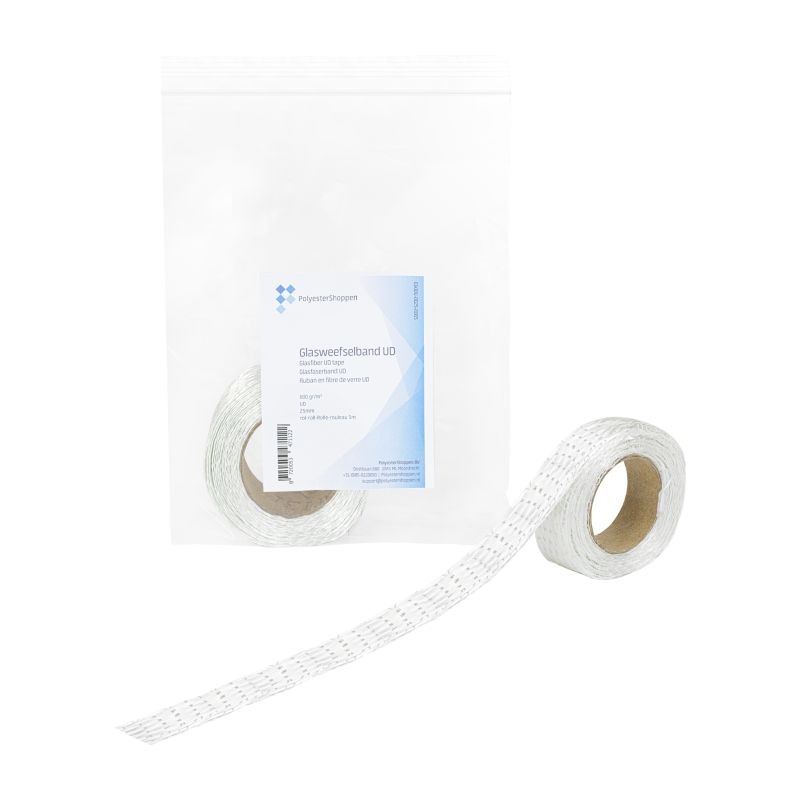

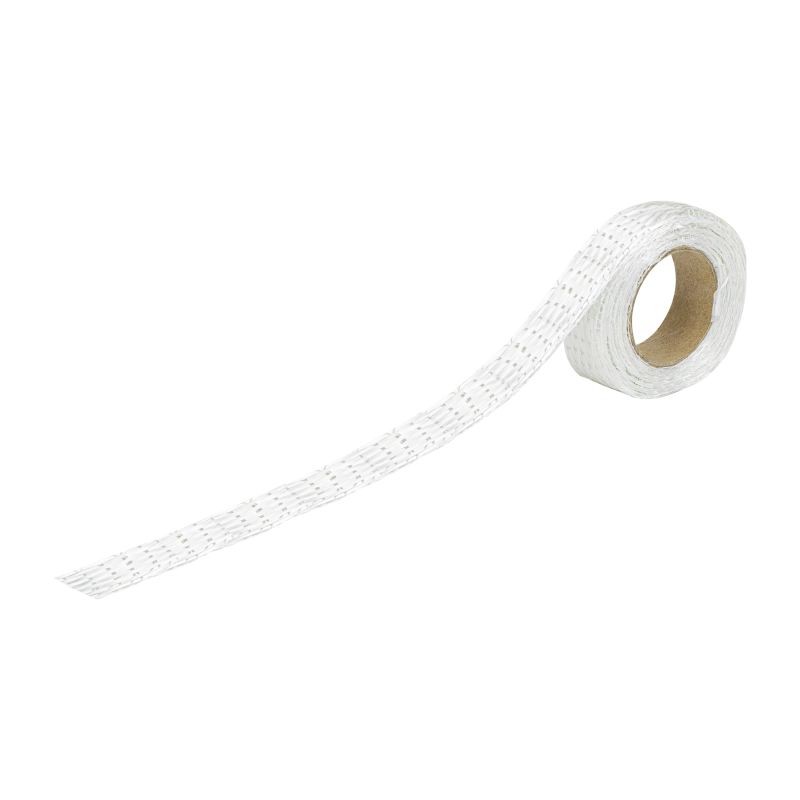

UD Glass Fibre Tape 600 gr/m2 (100 mm)
At a glance
- Suitable for epoxy and polyester
- Reinforcement in one direction
- Suitable for skateboards
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops
Unidirectional glass fibre tape (UD, 600 gr/m²) is specifically developed for the local reinforcement and stiffening of structures. This unidirectional glass fibre tape is ideally suited for small repairs, corner reinforcements, and for wrapping pipes, profiles and frames. Because virtually all glass fibres are oriented in a single direction (along the length of the tape), this material provides maximum tensile and bending strength in that direction.
Unlike traditional woven glass fibre tapes, in which the fibres run in multiple directions, UD glass fibre tape is ideal for applications where the load is primarily in one direction. This allows high stiffness and strength to be achieved with relatively little material. The result is a lightweight, strong and efficient laminate.
The glass fibre tape is 100 mm wide, easy to process, and combines excellently with epoxy resin, vinyl ester resin and polyester resin.
Applications of Unidirectional glass fibre tape
UD glass fibre tape is widely used for:
- Applications requiring additional stiffness in one direction.
- Reinforcing skateboards, longboards and hockey sticks.
- Local reinforcements and repairs.
- Corner reinforcements and edge finishing.
- Wrapping and reinforcing pipes, frames and profiles.
- Reinforcement of wooden structures and composite components.
Specifications
Weight: 600 gr/m2
Weave type: UD (unidirectional)
Width: 100 mm
Compatible with: polyester resin, vinylester resin and epoxy resin
Laminate thickness (hand lay-up): 0.58 mm
Resin consumption (hand lay-up): approx. 35 gr per linear metre (346 gr/m2)
Packaging:
- 5 m: 10 cm x 5 metres
- 20 m: 10 cm x 20 metres
- 50 m: 10 cm x 50 metres (full roll)
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA001267
-
The materials, substrates or tasks a product is intended for. A general claim such as 'suitable for plastics' does not mean it works with every type of plastic; the specific substrate and its preparation still matter.
- Polyester, Epoxy, Vinylester
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.

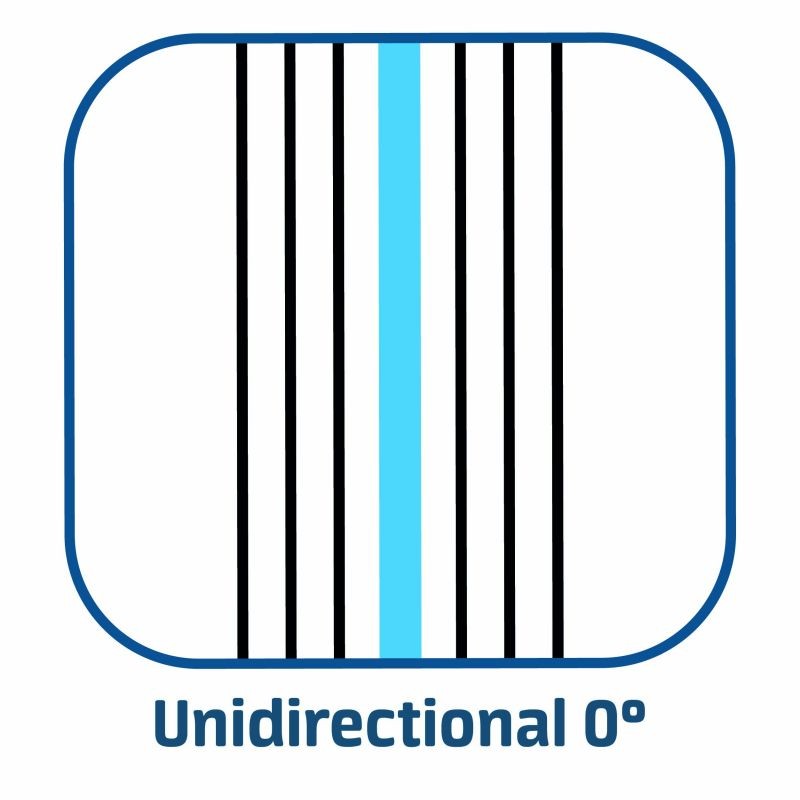

- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).
- Unidirectional (0°)
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Glass fabric
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 10 cm
-
Resin consumption indicates how much resin is required to properly wet out a reinforcement material. It may be stated in g/m² (grams per square metre), g/m for narrow fabric tapes or as resin quantity relative to dry fibre weight. Actual use depends on fibre type, areal weight and laminating method.
- Approximately 35 g/m (346 g/m²; hand lay-up)
-
Hand lay-up laminate thickness is the estimated thickness of one reinforcement layer after it has been impregnated with resin and consolidated with a roller. It is usually expressed in millimetres (mm). More layers produce a thicker laminate, but the final thickness also depends on fibre weight, resin uptake and consolidation.
- 0.58 mm
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 600 g/m²
