Carbon fabric 200 g/m2 (twill weave) 100 cm
Often chosen
At a glance
- High strength and rigidity
- Twill weave
- Width: 100 cm
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops

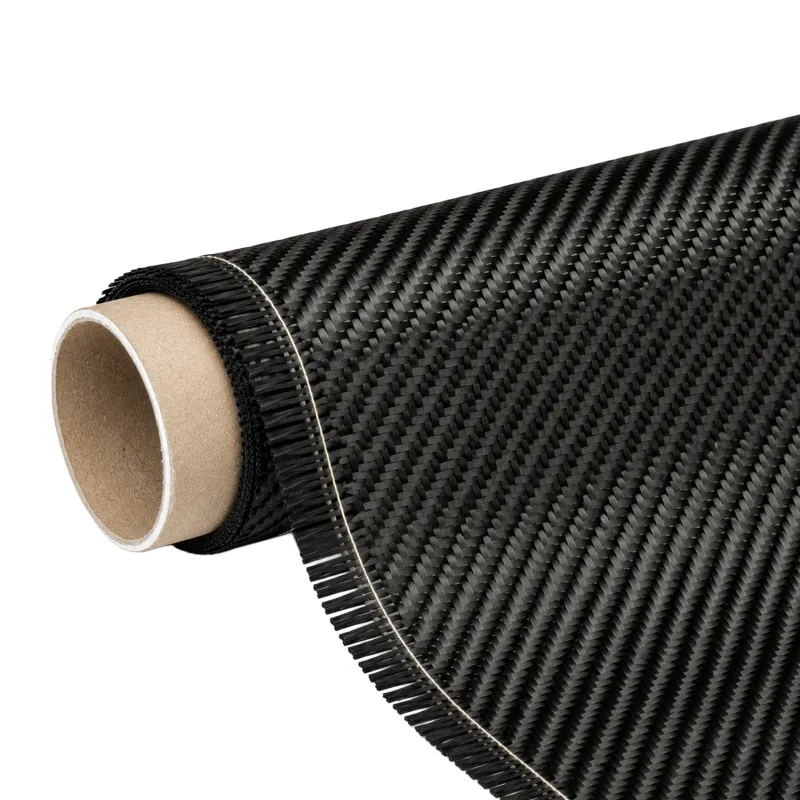

Twill carbon fabric, also known as carbon fibre fabric, is a high-quality material renowned for its excellent stiffness and strength. Thanks to these properties, this type of fabric is commonly used in motorsports, aerospace, model making, aircraft construction, and yacht building. It is particularly suitable for applications where strong, lightweight structures are required.
This carbon fabric is woven in a twill pattern, making it highly flexible and ideal for products with complex shapes, curves, and details. In addition to its functional advantages, twill carbon fabric is often chosen for its distinctive appearance. This makes it not only suitable as a reinforcement material but also perfect for decorative applications, such as a carbon overlay on a car bonnet.
Tip: planning to work on carbon skinning? Check out our complete Carbon Skinning kit. This kit contains everything you need, including carbon twill fabric, epoxy, and all the necessary accessories.
Processing carbon fabric
Carbon fabric performs best when used in combination with RESION Superclear epoxy resin. The fabric has a resin consumption of approximately 275 g/m² and achieves a layer thickness of 0.39 mm when laminated manually.
Want to achieve the best results? We recommend using a vacuum technique. However, for most applications, this is not strictly necessary.
Want to learn more about working with carbon using a vacuum technique? Read our information article on laminating with carbon fibre fabric, or get in touch with our specialists.
Resin consumption
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.39 mm | approx. 275 g/m2 |
| Wet bagging | 0.31 mm | approx. 192 g/m2 |
| Resin infusion | 0.28 mm | approx. 162 g/m2 |
Specifications
Weight: 200 g/m2
Weaving style: twill (2/2)
Fibre: T300 3K or similar
Width: 100 cm or 125 cm
Packaging: securely wrapped on a roll, in plastic film, in a cardboard box.
Suitable resins: epoxy and polyester
Dimensions:
- 100 cm x 1 linear metre (1 m2)
- 100 cm x 2 linear metres (2 m2)
- 100 cm x 3 linear metres (3 m2)
- 100 cm x 5 linear metres (5 m2)
- 100 cm x 10 linear metres (10 m2)
- 100 cm x 20 linear metres (20 m2)
- 100 cm x 100 linear metres (full roll)
Other lengths are available on request. Please feel free to contact us.
Product properties
The key technical properties clearly listed in one place.
- Article number
- KOO000111
-
Fibre type affects a composite's strength, stiffness, toughness and weight. Common reinforcement fibres include:
- Glass fibre: a cost-effective choice used widely in polyester and epoxy laminates.
- Carbon fibre: very stiff and lightweight, suitable for parts that need to be light and hold their shape.
- Aramid: a tough fibre with good resistance to certain impacts and tearing, but often harder to cut neatly and sand.
Final properties also depend on fibre orientation, fabric type, resin content and laminate quality.
- Carbon
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Weefsel
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.
- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).
- Twill
-
The product's dimensions, usually shown as length × width × height or another product-specific order. Check whether the measurements describe the outside, inside or usable space, especially for containers and moulds.
- 1 x 1 m
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 100 cm, 125 cm
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 200 g/m²
