Quadriaxial Glass Fabric 1200 gr/m2
At a glance
- Low resin absorption
- Quasi isotropic
- Very good wetting
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops
Product description
Quadriaxial Glass Fabric 1200 gr/m2 is a high-quality extra heavy-duty glass fabric. The fabric is used for building boats, surfboards, longboards, skis and many other similar applications. The resin consumption is approximately 1088 gr/m2 and is suitable for laminating with epoxy resin, polyester resin and vinylester resin. After hand lay-up and curing, the quadraxial fabric provides a laminate thickness of 1.55 mm.
Quadriaxial Glass Fabric 1200 gr/m2 is also available in a lighter variant: Quadraxial Glass Fabric 600 gr/m2.
What is Quadraxial glass fabric?

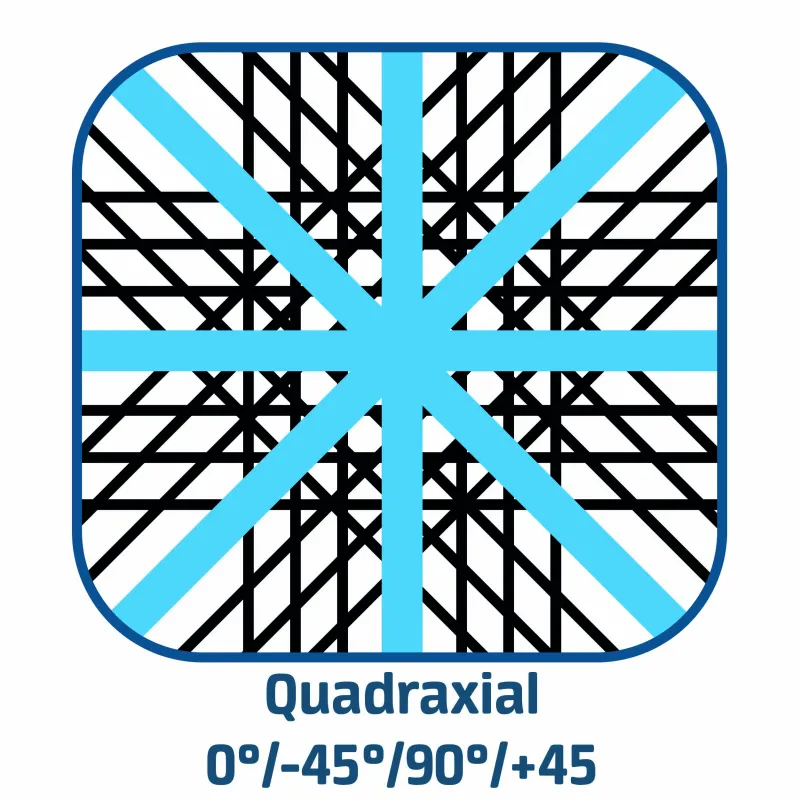

Quadraxial glass fabric is an advanced fabric consisting of 4 layers of unidirectional fibres. The fibres are oriented as follows: one layer along the length of the roll and one across the width, and two layers at angles of +45 and -45 degrees (0/90/-45/+45). This construction ensures excellent compressive and tensile strength in all directions, making the fabric quasi-isotropic.
This structure provides excellent compressive and tensile strength. A key advantage of this fabric is that it enables lightweight yet very stiff constructions. Resin absorption is minimised due to the tight fibre alignment, resulting in a stronger, more efficient laminate.
Specifications
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 1.55 mm | approx. 1088 gr/m2 |
| Wet Bagging | 1.08 mm | approx. 618 gr/m2 |
| Vacuum injection | 1.04 mm | approx. 570 gr/m2 |
Weight: 1200 gr/m2
Weave type: quadraxial 0/90/-45/+45
Width: 127 cm
Compatible with: polyester resin, vinylester resin and epoxy resin
Packaging:
- 1 lm: 127 cm x 1 lm (1.27 m2)
- 5 lm: 127 cm x 5 lm (6.35 m2)
- 20 lm: 127 cm x 20 lm (25.4 m2)
- 50 lm: 127 cm x 50 lm (63.5 m2), roll-packed
Delivery:
- 1 m2, 5 m2 and 20 m2 roll-packed in a box
- 50 metres, roll-packed and foil-wrapped
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA000948
- Suitable for
- Polyester, Epoxy, Vinylester
- Tissue type
- Quadraxial (0°/90°/+45°/-45°)
- Product type
- Glass fabric (special)
