UD Glass Fabric 400 g/m2
At a glance
- Low resin absorption
- Easy lamination
- Very high tensile strength
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops

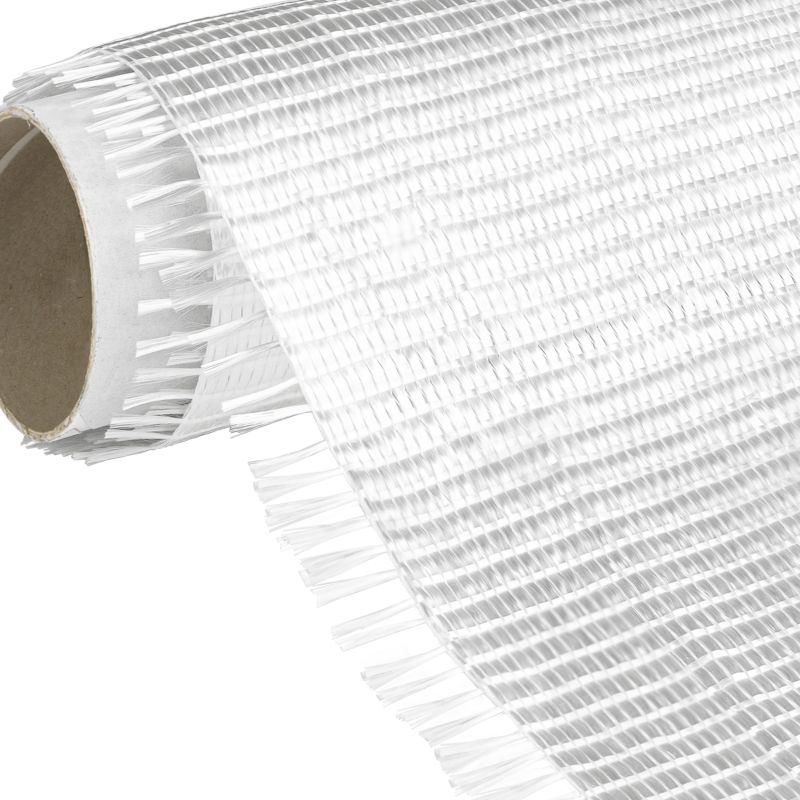

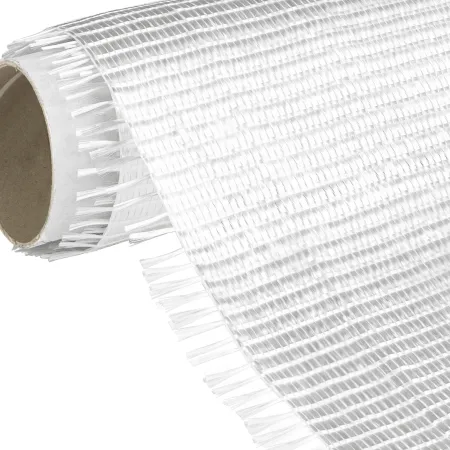

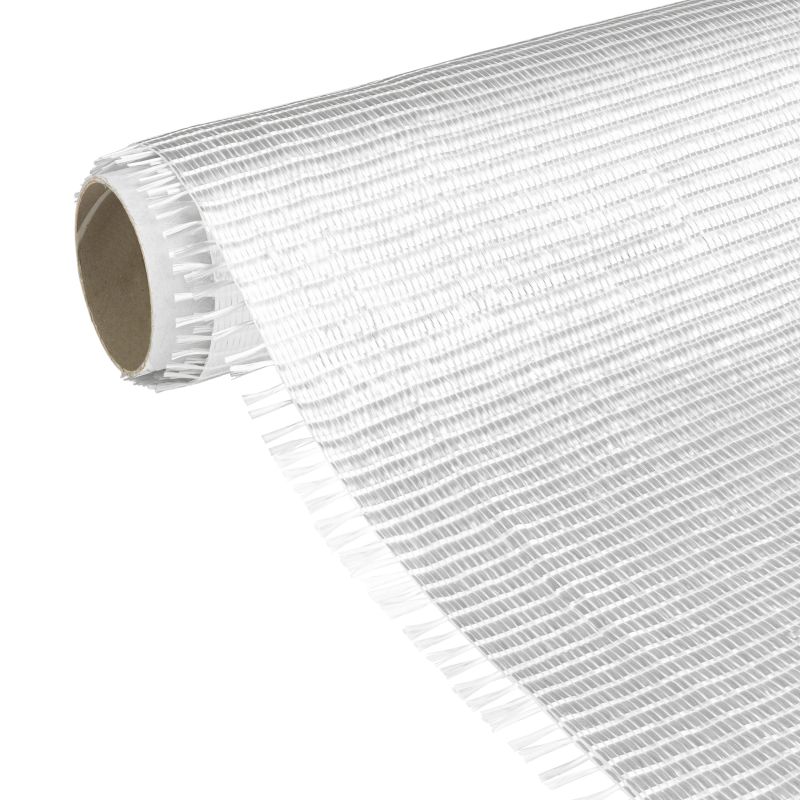

UD glass fabric 400 g/m2 is a unidirectional high quality glass fibre fabric which is used for building boats, surfboards, longboards, skis and similar applications. The laminated thickness of this glass fabric is 0.4 mm and consumption is about 320 grams per square metre.
What is unidirectional glass fabric?
UD glass fabric consists of a layer of unidirectional glass fibre, that is connected in the width direction by a small amount of glass fibres and stitching threads. This creates an easy-to-process UD glass fabric of large widths. The advantage of this type of glass fabric is that it can be used to create a lightweight yet rigid construction. Resin absorption is minimised because the fibres lie close together.
UD glass fabric provides high bending and tensile strength.
Unidirectional glass fabric is also available in a heavier version: UD Glass Fabric 640 gr/m2 (layer thickness: 0.72 mm).
Specifications
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.51 mm | approx. 332 gr/m2 |
| Wet Bagging | 0.37 mm | approx. 194 gr/m2 |
| Vacuum injection | 0.36 mm | approx. 179 gr/m2 |
Weight in length direction: 400 gr/m2
Weight in width direction: 50 gr/m2
Stitch weight: 11 gr/m2
Total weight: 461 gr/m2
Weave type: UD (one way)
Width: 127 cm
Compatible with: polyester resin, vinylester resin and epoxy resin
Packaging:
- 1 lm: 127 cm x 1 lm (1.27 m2)
- 5 lm: 127 cm x 5 lm (6.35 m2)
- 20 lm: 127 cm x 20 lm (25.m2)
- 127 cm x 50 lm (approx. 63.5 m2), roll-packed
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA000543
-
The materials, substrates or tasks a product is intended for. A general claim such as 'suitable for plastics' does not mean it works with every type of plastic; the specific substrate and its preparation still matter.
- Polyester, Epoxy, Vinylester
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.

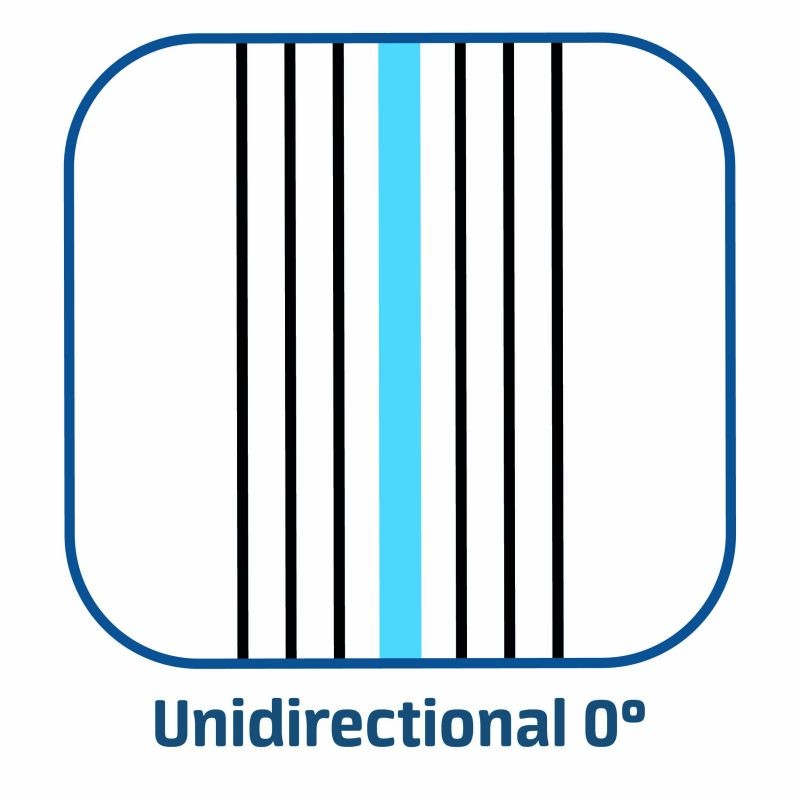

- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).
- Unidirectional (0°)
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Glass fabric (special)
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 1.270 mm
