Biaxial Glass Fabric 450 gr/m2
At a glance
- Low resin absorption
- High torsional stiffness
- Laminate thickness: 0.59 mm

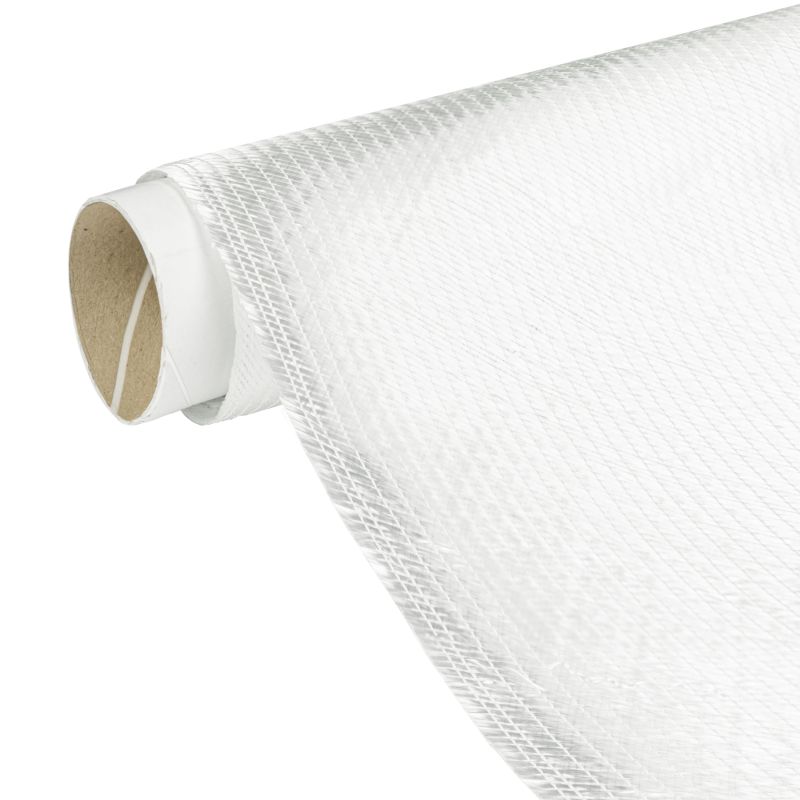

Biaxial glass fabric 450 gr/m2 is a high-quality multiaxial glass fabric used for building boats, surfboards, longboards, skis and much more. The product is suitable for laminating with epoxy, polyester and vinylester. The biaxially woven glass laminate consumes approximately 370 gr/m2 of resin and gives a layer thickness of approximately 0.49 mm after lamination and curing.
What is Biaxial glass fabric?
Biaxial glass fabric is a fabric that consists of 2 layers of unidirectional fibres connected at an angle of 45 degrees. This provides excellent compressive and tensile strength. Multiaxial glass fabric enables lightweight yet stiff constructions. Resin absorption is minimised due to the tight fibre alignment.
Biaxial glass fabric provides high bending strength but also improves torsional rigidity of constructions.
Specifications
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.59 mm | approx. 415 gr/m2 |
| Wet Bagging | 0.37 mm | approx. 193 gr/m2 |
| Vacuum injection | 0.36 mm | approx. 198 gr/m2 |
Weight: 450 gr/m2

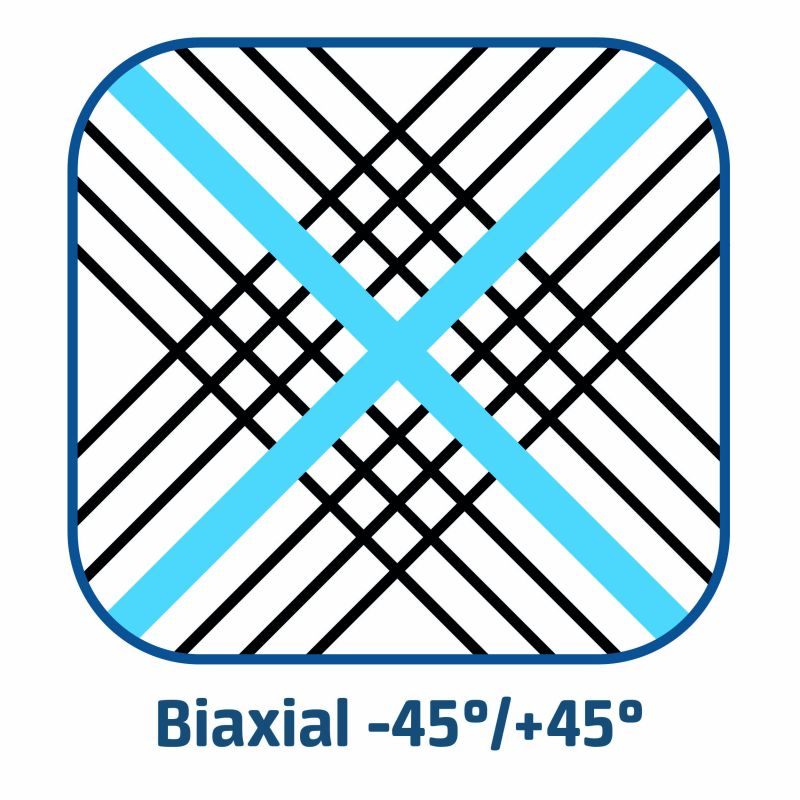

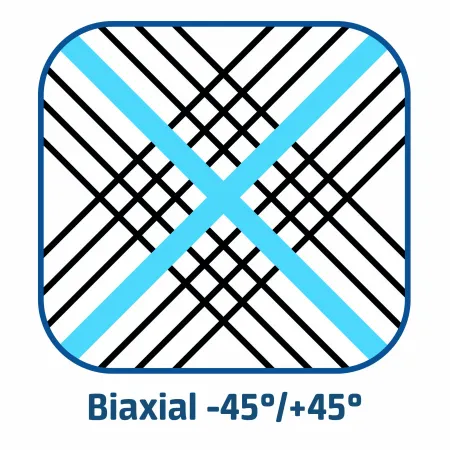

Weave type: biaxial -45/+45
Fabric width: 127 cm
Compatible with: polyester resin, vinylester resin and epoxy resin
Packaging:
- 1 lm: 127 cm x 1 lm (1.27 m2)
- 5 lm: 127 cm x 5 lm (6.35 m2)
- 20 lm: 127 cm x 20 lm (25.4 m2), 4 pieces, folded
- 20 lm: 127 cm x 20 lm (25.4 m2), roll-packed
- 50 lm: 127 cm x 50 lm (63.5 m2), roll-packed
Delivery:
- 1 m2, 5 m2 and 20 m2 roll-packed in a box
- 50 metres, roll-packed and foil-wrapped
- 1 m2 and 5 m2 folded and packed in plastic foil
- 20 m2 folded: 4 x 5 m2 folded and packed in plastic foil
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA000258
-
The materials, substrates or tasks a product is intended for. A general claim such as 'suitable for plastics' does not mean it works with every type of plastic; the specific substrate and its preparation still matter.
- Polyester, Epoxy, Vinylester
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.
- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).
- Biaxial (-45°/+45°)
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Glass fabric (special)
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 127 cm
-
The parts and accessories supplied as standard, such as a complete set of components, separate accessories or a machine with attachments. Product photographs may also show items that are not included.
- 1 m², 5 m² and 20 m² roll-packed in a box
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 450 g/m²
Safety information
Read the warnings and use appropriate protective equipment before handling the product.
