Biaxial Glass Fabric 600 gr/m2
At a glance
- Low resin absorption
- High torsional stiffness
- Laminate thickness: 0.78 mm
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops
Product description
Biaxial glass fabric 600 gr/m2 is a high-quality multiaxial glass fabric and is often used in the construction of boats, surfboards, longboards, skis and similar products. This type of biaxial fabric has the greatest layer thickness of the available variants and consists of two layers of unidirectional fibres oriented at an angle of 45 degrees. This provides excellent compressive and tensile strength. This makes it possible to create a light but very stiff construction, making it an ideal choice for applications where both strength and weight are important.
Biaxial glass fabric is suitable for laminating in combination with epoxy, polyester and vinylester. With a resin consumption of approximately 549 grams per square meter, it produces a layer thickness of approximately 0.78 mm after lamination and curing.
We also supply biaxial glass fabric in variants of 250 gr/m2 (0.34 mm layer thickness) and 450 gr/m2 (0.59 mm layer thickness).
Specifications
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.78 mm | approx. 549 gr/m2 |
| Wet Bagging | 0.49 mm | approx. 255 gr/m2 |
| Vacuum injection | 0.47 mm | approx. 235 gr/m2 |
Weight: 600 gr/m2

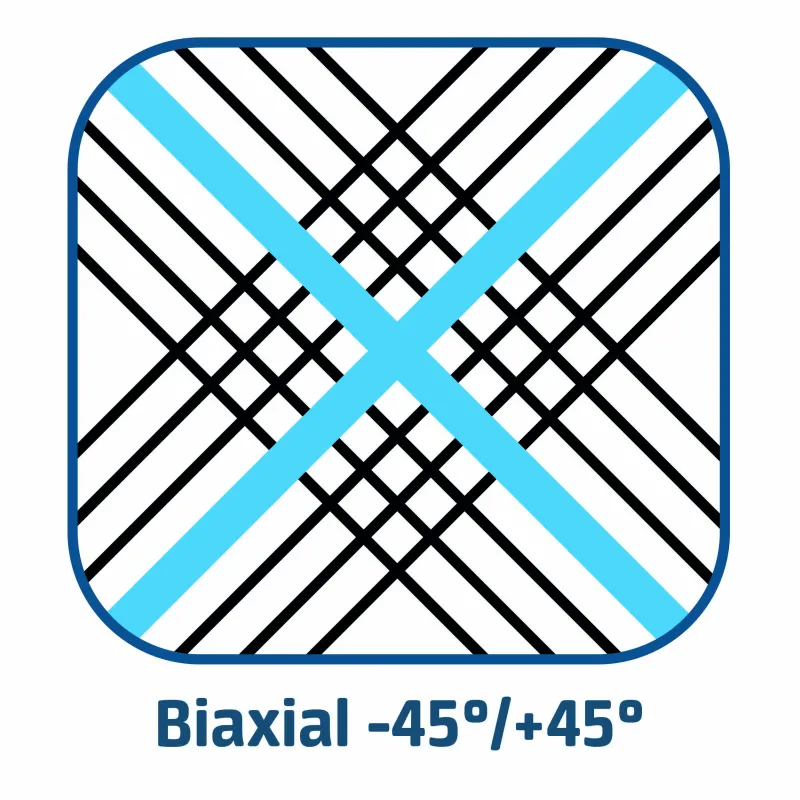

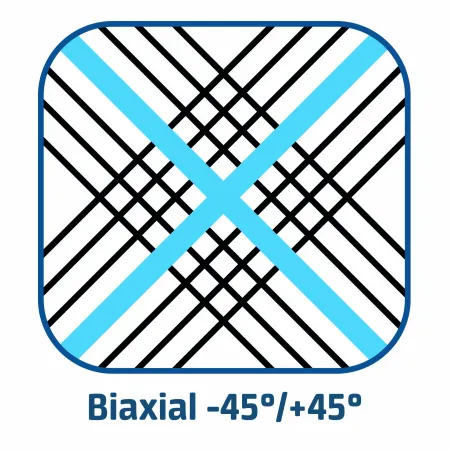

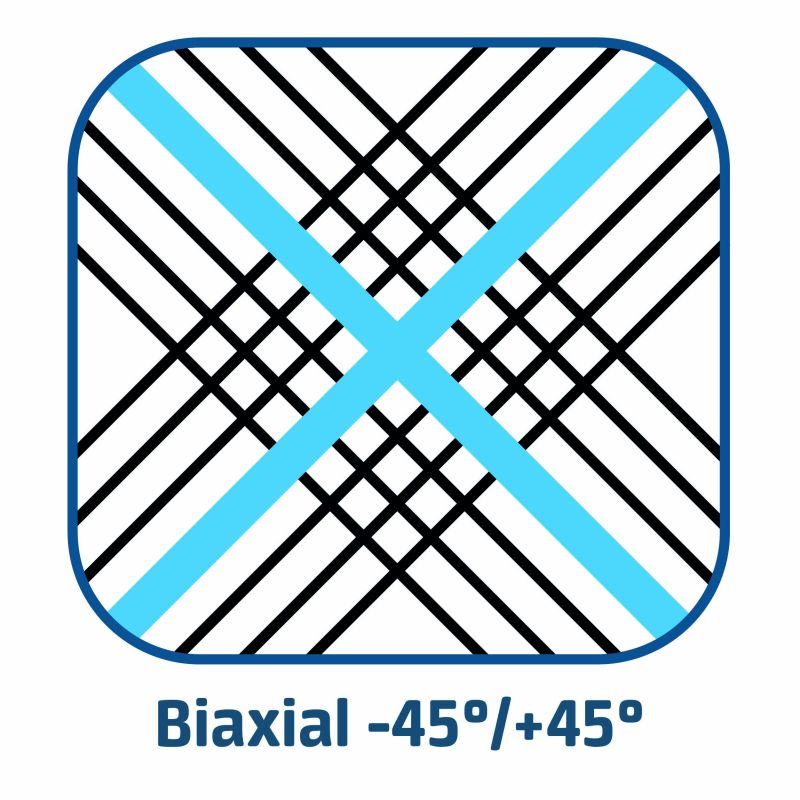

Weave type: biaxial -45/+45
Fabric width: 127 cm
Compatible with: polyester resin, vinylester resin and epoxy resin
Packaging:
- 1 lm: 127 cm x 1 lm (1.27 m2)
- 5 lm: 127 cm x 5 lm (6.35 m2)
- 20 lm: 127 cm x 20 lm (25.4 m2)
- 50 lm: 127 cm x 50 lm (63.5 m2), roll-packed
Delivery:
- 1 m2, 5 m2 and 20 m2 roll-packed in a box
- 50 metres, roll-packed and foil-wrapped
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA000456
- Suitable for
- Polyester, Epoxy, Vinylester
- Tissue type
- Biaxial (-45°/+45°)
- Product type
- Glass fabric (special)
