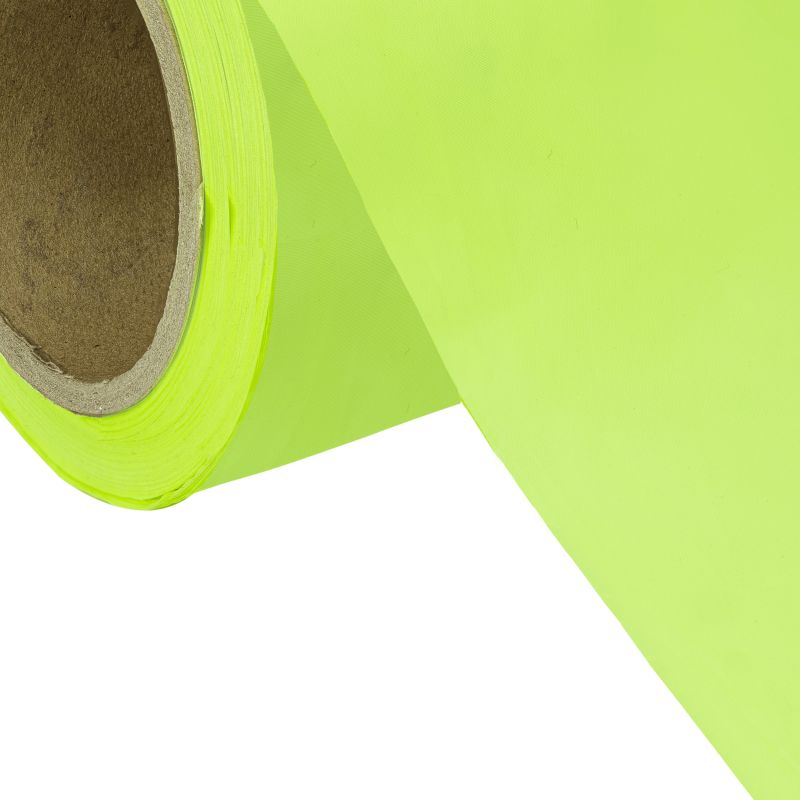

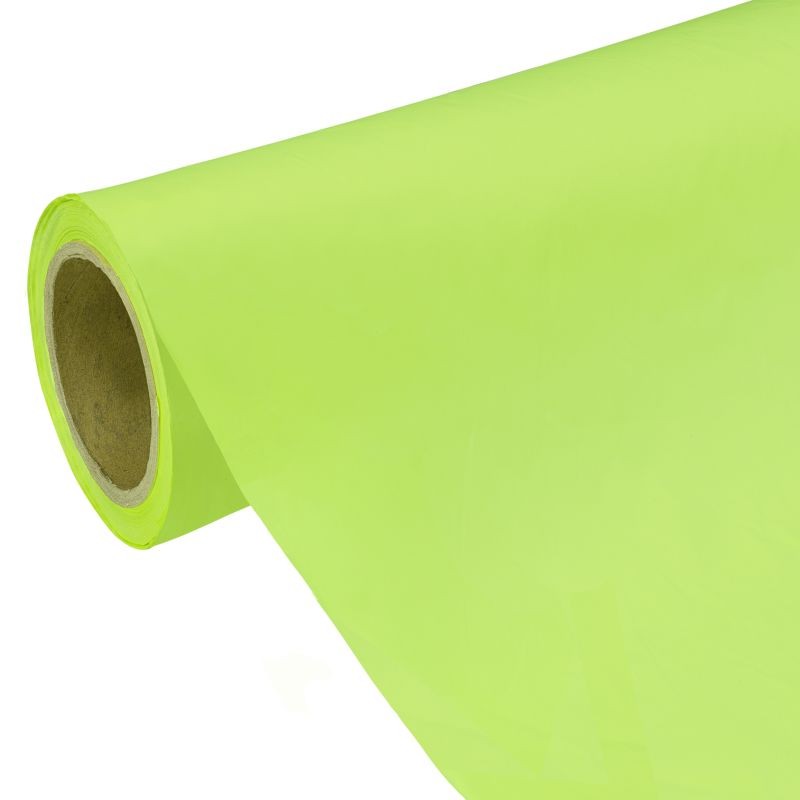

Release coated peel ply
At a glance
- Ideal for thin laminates
- Very easy removal
- Width: 150 cm
Release coated peel ply is a high-temperature-resistant, finely woven nylon peel ply with a silicone release coating. Thanks to the coating, the peel ply does not adhere to the cured laminate and can be easily removed after curing. This leaves a clean, lightly textured surface suitable for further bonding or finishing.
This silicone-coated peel ply is suitable for various resin and composite systems and is widely used in the production of composite parts. It is ideal for thinner laminates and applications where preventing pre-release is important.
The excellent release properties ensure that the peel ply can be easily removed from the laminate. Please note that silicone coatings may, in some cases, transfer substances to the laminate surface. Therefore, check beforehand whether the surface is suitable for the intended subsequent treatment.
Specifications
Fibre type: nylon (polyamide)
Colour: yellow
Coating: silicone
Weight: 60 g/m2
Thickness: 85 µm
Width: 150 cm
Maximum temperature: 230 °C
Packaging:
- Roll 1.5 x 5 metres (7.5 m2)
- Roll 1.5 x 20 metres (30 m2)
- Roll 1.5 x 100 metres (150 m2)
Product properties
The key technical properties clearly listed in one place.
- Article number
- VAC001271
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Scheurweefsel
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 150 cm
-
The physical thickness of the supplied material, such as a panel, pad, film or foam sheet. This differs from the thickness of a liquid coating applied to a surface.
- 0.085 mm
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 60 g/m²
- Net contents
- Roll 1.5 x 5 m (7.5 m²)
-
Fibre type affects a composite's strength, stiffness, toughness and weight. Common reinforcement fibres include:
- Glass fibre: a cost-effective choice used widely in polyester and epoxy laminates.
- Carbon fibre: very stiff and lightweight, suitable for parts that need to be light and hold their shape.
- Aramid: a tough fibre with good resistance to certain impacts and tearing, but often harder to cut neatly and sand.
Final properties also depend on fibre orientation, fabric type, resin content and laminate quality.
- Polyamide (nylon)
