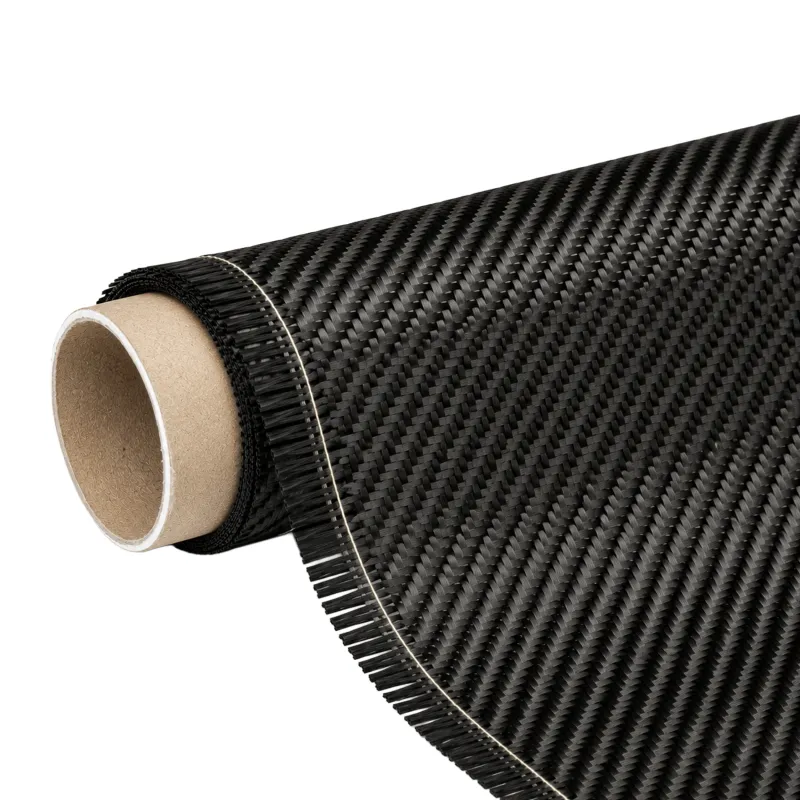

Carbon fabric 200 g/m2 (twill weave) 125 cm
At a glance
- High strength and rigidity
- Twill weave
- Width: 125 cm
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops
Carbon twill fabric is also known as carbon fabric. Known for its high rigidity, this carbon fibre is widely used in motorsport, aerospace, aircraft construction, yacht building and for applications in such industries.
Carbon fabric is very pliable and therefore suitable for products with a lot of shape, curves and details. This carbon fabric is also the most commonly chosen fabric because of its familiar appearance. The fabric can be used as a reinforcement fabric, but is also perfectly suitable for carbon overlay on, for example, a bonnet.
Processing carbon fabric
This fibre performs best with an epoxy resin but is also used in combination with polyester resin for decorative layers. Aiming for the best performance? Then we recommend using vacuum techniques. However, this is not necessary for most applications.
Carbon fabric 200 g/m2 is also available with a width of 100 cm.
Resin consumption
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.39 mm | approx. 275 g/m2 |
| Wet bagging | 0.31 mm | approx. 192 g/m2 |
| Resin infusion | 0.28 mm | approx. 162 g/m2 |
Specifications
Weight: 200 g/m2
Weaving style: twill 2/2
Fibre: T300 3K or similar
Width: 125 cm
Packaging: securely wrapped on a roll, in plastic film, in a cardboard box
Dimenions:
- 125 cm x 1 linear metre (1.25 m2)
- 125 cm x 2 linear metres (2.5 m2)
- 125 cm x 3 linear metres (3.75 m2)
- 125 cm x 5 linear metres (6.25 m2)
- 125 cm x 10 linear metres (12.5 m2)
- 125 cm x 20 linear metres (25 m2)
- 125 cm x 100 inear metres (full roll)
Other lengths are available on request. Please feel free to contact us.
Product properties
The key technical properties clearly listed in one place.
- Article number
- KOO001456
-
Fibre type affects a composite's strength, stiffness, toughness and weight. Common reinforcement fibres include:
- Glass fibre: a cost-effective choice used widely in polyester and epoxy laminates.
- Carbon fibre: very stiff and lightweight, suitable for parts that need to be light and hold their shape.
- Aramid: a tough fibre with good resistance to certain impacts and tearing, but often harder to cut neatly and sand.
Final properties also depend on fibre orientation, fabric type, resin content and laminate quality.
- Carbon
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Weefsel
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.
- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).
- Twill
-
The product's dimensions, usually shown as length × width × height or another product-specific order. Check whether the measurements describe the outside, inside or usable space, especially for containers and moulds.
- 1.25 x 1 m
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 125 cm
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 200 g/m²
