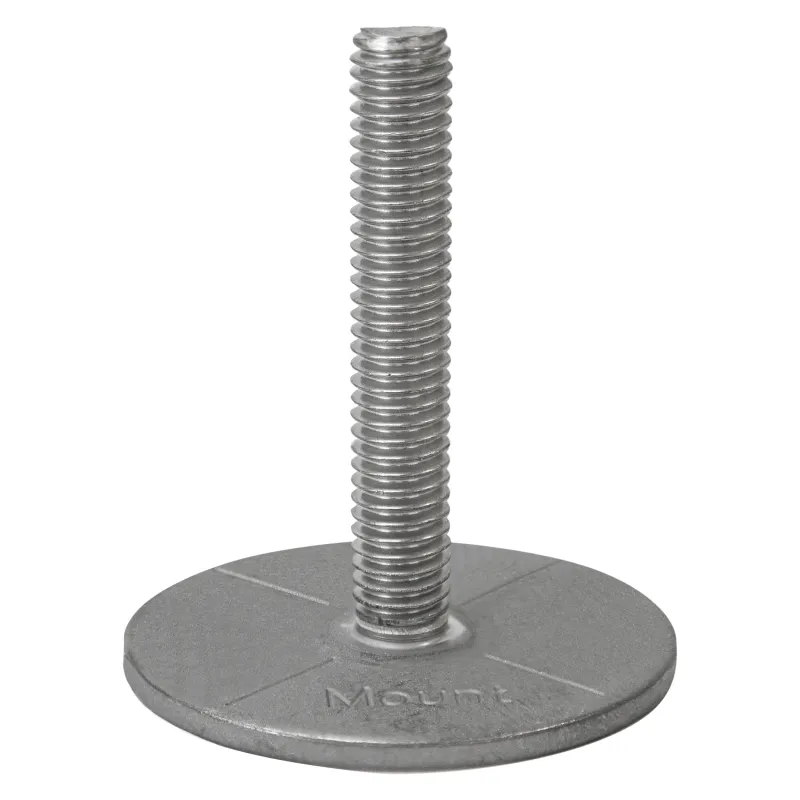

Weld Mount Stainless Steel Studs (M4)

Secure lightweight panels, consoles and electrical enclosures without drilling or welding using the Weld Mount Panel Studs M4. These are compact, bondable stainless steel threaded studs made from V4A stainless steel. With a base plate diameter of just 15.5 mm, these studs are also suitable for small or crowded surfaces where larger Weld Mount studs take up too much space.

No drill holes, no risk of leaks and no weakening of the material!

Why choose Weld Mount Stainless Steel Studs M4?

Traditional fastening methods often require drilling or welding. This is time-consuming, damages materials and is simply not always possible. Weld Mount bondable stainless steel studs provide a strong and durable alternative:

• Easy installation without drilling or welding.
• Made from V4A stainless steel and resistant to moisture, salt and corrosion.
• High load capacity.
• Flexible installation options: can be mounted to both the top and underside of the substrate.

Applications of Weld Mount studs

Weld Mount studs (M4) are used worldwide for a wide range of fastening applications. Especially for lighter-duty onboard applications, drilling is often undesirable. Typical applications for these studs include:

• Dashboard panels and instrument consoles in wheelhouses or cockpits.
• Mounting electrical panels and switch cabinets.
• Anchoring cushion clamps in cabins and cockpits.
• Mounting finishing panels and interior trim in marine interiors.
• Fastening to fibreglass and composite surfaces without damaging the laminate.

Available sizes

Weld Mount Stainless Steel Studs with M4 thread are available in the following sizes:

• M4 x 12 mm
• M4 x 20 mm
• M4 x 25 mm
• M4 x 35 mm
• M4 x 40 mm
• M4 x 50 mm

Specifications

Article numer: PS16-M407
Material: stainless steel (V4A)
Thread: M4
Base diameter: 15,5 mm
Tensile strength: 136 kg
Shear strength: 170 kg
Maximum torque: 10 Nm
Supplied: individually or in packs of 25
