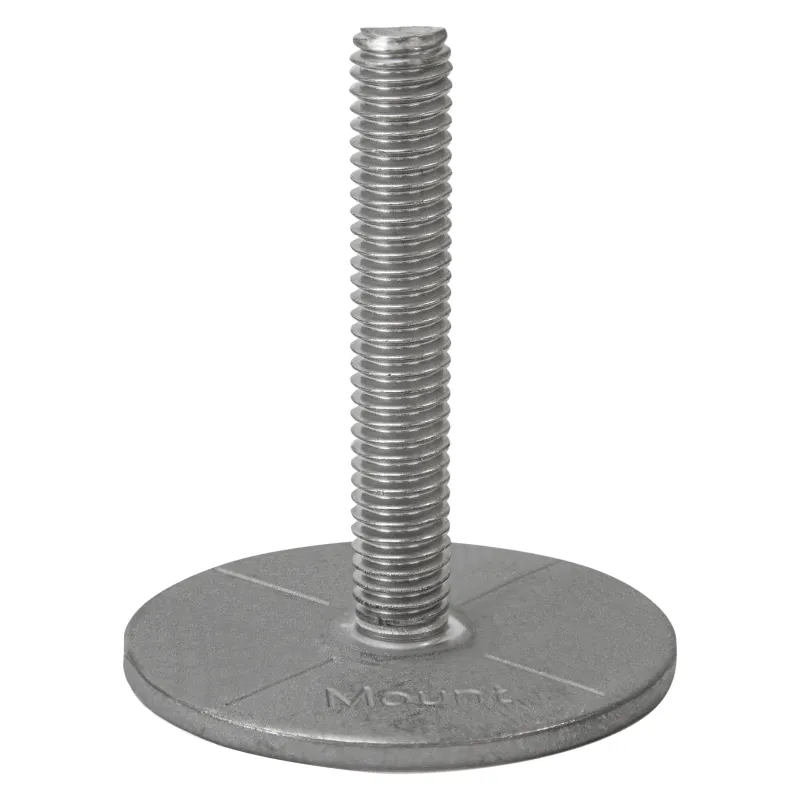

Weld Mount Stainless Steel Studs (M5)
At a glance
- M5 thread
- Stainless steel (V4A)
- Base: 32 mm
Secure cable clamps and lightweight components without drilling or welding using the Weld Mount Stainless Steel Studs M5. These are bondable stainless steel studs made from V4A stainless steel. Thanks to the finer M5 thread, these studs are particularly suitable for wiring, cable management and applications where a smaller thread diameter is preferred or required.
No drill holes, no risk of leaks and no weakening of the material.
Why choose Weld Mount Stainless Steel Studs M5?
The M5 stud is the ideal choice when the strength of the 32 mm base plate is required, but your application specifically requires M5 thread:
- Easy installation without drilling or welding.
- Fine M5 thread for precise fastening applications.
- Made from V4A stainless steel and resistant to moisture, salt and corrosion.
- High load capacity.
- Flexible installation options: can be mounted to both the top and underside of the substrate.
Applications of Weld Mount studs
Weld Mount studs (M5) are used worldwide for a wide range of fastening applications. Typical applications for these M5 studs include:
- Securing cable clamps and wiring (wire clamps).
- Mounting lightweight panels and finishing components.
- Fastening to fibreglass and composite surfaces without damaging the laminate.
- Cable management in hulls, decks and superstructures.
- Installation in hard-to-reach locations in marine and yacht construction.
Available sizes
Weld Mount Stainless Steel Studs with M4 thread are available in the following sizes:
- M5 × 15 mm
- M5 × 20 mm
- M5 × 25 mm
- M5 × 35 mm
- M5 × 40 mm
- M5 × 50 mm
Specifications
Article numer: PS16-M407
Material: stainless steel (V4A)
Thread: M4
Base diameter: 15,5 mm
Tensile strength: 136 kg
Shear strength: 170 kg
Maximum torque: 10 Nm
Supplied: individually or in packs of 25
Product properties
The key technical properties clearly listed in one place.
- Article number
- HAL002343
-
The connection type determines whether a hose, fitting or accessory is compatible with a device. Check the size, thread or coupling system: parts with the same nominal size do not necessarily have matching connections.
- M5
-
The parts and accessories supplied as standard, such as a complete set of components, separate accessories or a machine with attachments. Product photographs may also show items that are not included.
- Per piece or per 25 pieces
-
The base material a product or part is made from, such as HDPE, aluminium, glass fibre or foam. Material choice affects weight, stiffness, chemical resistance and how the part can be worked or processed.
- Stainless steel (AISI 316 / V4A / A4)
