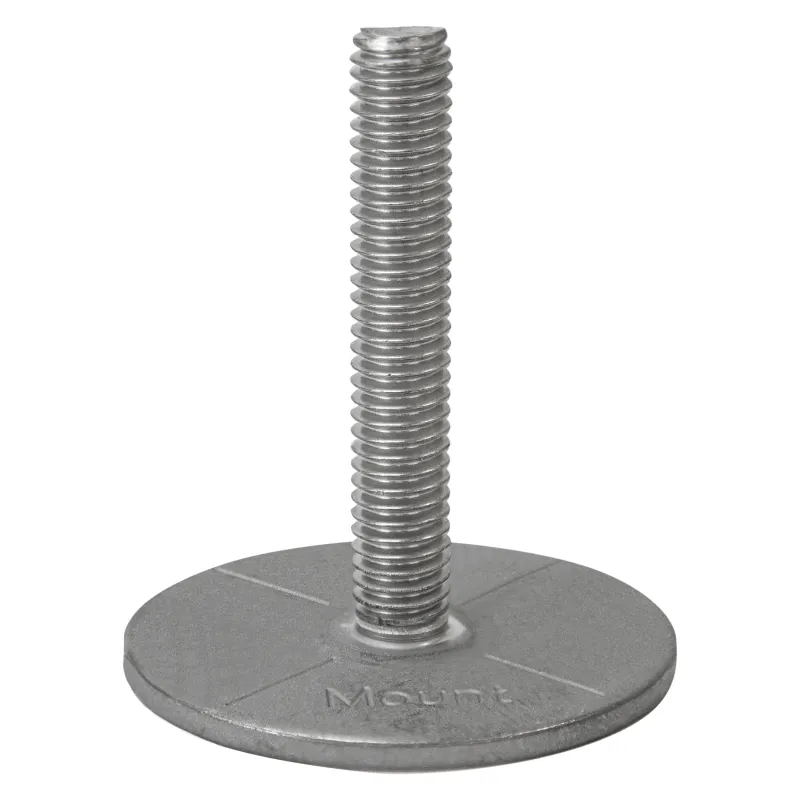

Weld Mount Stainless Steel Heavy Studs (M8/M10)
- M8/M10 thread
- Stainless steel (V4A)
- Base: 50 mm
Secure heavy components without drilling or welding using the Weld Mount Heavy Studs M8/M10, the strongest model in the Weld Mount range. With a base plate diameter of 50 mm, a tensile strength of 544 kg and a shear strength of 680 kg, these studs are suitable for the most demanding marine, industrial and offshore applications.
The stud is friction welded to the base plate, creating an exceptionally strong connection.
Why choose Weld Mount Stainless Steel Studs M8/M10?
While the smaller studs are ideal for panels and cable management, the Heavy Stud has been specifically developed for high-load applications. The combination of friction welding and a large base plate makes this the strongest stud in the Weld Mount range:
- Easy installation without drilling or welding.
- Friction-welded connection, permanently bonding the stud and base plate into a single unit (no weak connection).
- Large base plate (50 mm).
- Made from V4A stainless steel and resistant to moisture, salt and corrosion.
- Extremely high load capacity.
- Flexible mounting options.
Applications of Weld Mount studs
The Heavy Studs M8/M10 are particularly suitable for heavy-duty structural mounting applications onboard, where conventional drilling or welding is undesirable or impossible. Typical applications include:
- Mounting filters and heavy technical equipment.
- Securing heavy panels and structural parts.
- Mounting signs and signage panels.
- Structural fastening in hulls, decks and engine rooms.
- Heavy-duty through-deck or wall mounting.
Available sizes
Weld Mount Stainless Steel Heavy Studs with M8 or M10 thread are available in the following sizes:
- M8 x 30 mm
- M8 x 40 mm
- M10 x 30 mm
- M10 x 40 mm
Specifications
- Article number: HS50-M8125 (M8) or HS50-M1015 (M10)
- Material: stainless steel (V4A)
- Thread: M8/M10
- Base diameter: 50 mm
- Tensile strength: 544 kg
- Shear strength: 680 kg
- Supplied: individually or in packs of 25
