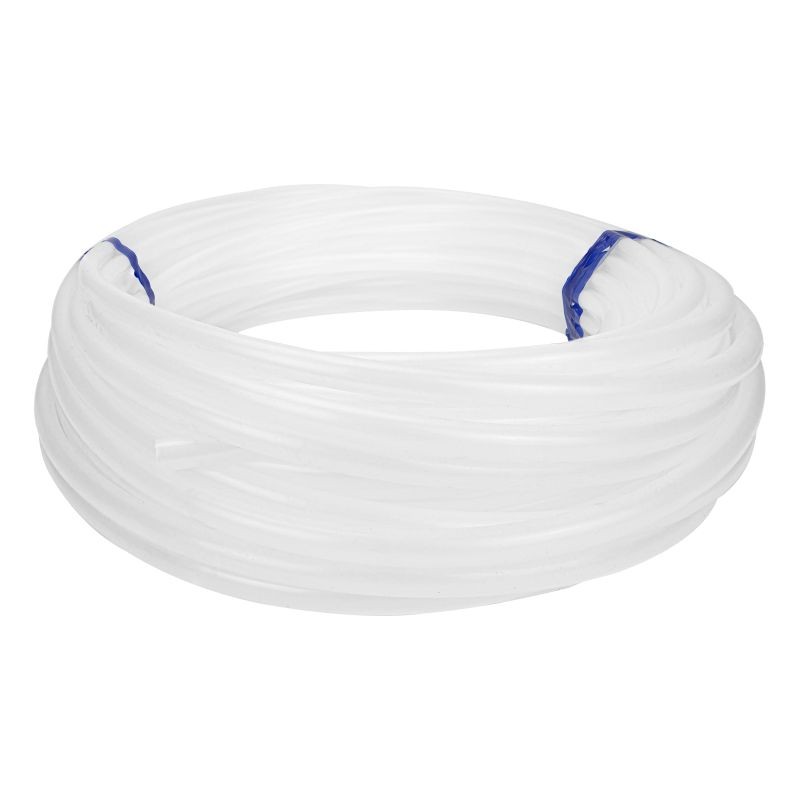

Vacuum tubing 10/12 mm
At a glance
- Strong vacuum binding
- Transparent
- Provides a tight seal on fittings
This transparent 10/12 mm vacuum tubing is suitable for connecting a vacuum bag to a resin infusion catch pot or vacuum pump. The tubing is made from durable polyethylene (PE) and is resistant to elevated temperatures.
The vacuum line is suitable for use at temperatures up to 120 °C and has an inner diameter of 10 mm and an outer diameter of 12 mm.
Specifications
Material: PE (polyethylene)
Colour: transparent
Recommended processing temperature: 90 °C
Maximum processing temperature: 120 °C
Dimensions:
- Inner diameter: Ø 10 mm
- Outer diameter: Ø 12 mm
Packaging:
- Roll of 2 metres
- Roll of 50 metres
Product properties
The key technical properties clearly listed in one place.
- Article number
- VAC000445
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Vacuumleiding
-
The recommended application temperature range indicates the conditions under which the product can generally be applied and cured properly. Three temperatures matter:
- Air: the temperature in the workshop or outdoors.
- Substrate: the temperature of the surface being treated.
- Product: the temperature of the resin, adhesive or coating itself.
A cold substrate can cause condensation and affect adhesion. At higher temperatures, two-component products may react faster, reducing their working time. Check the dew point and follow the product instructions.
- 90 °C
-
The base material a product or part is made from, such as HDPE, aluminium, glass fibre or foam. Material choice affects weight, stiffness, chemical resistance and how the part can be worked or processed.
- Polyethylene (PE)
-
Maximum application temperature is the highest temperature at which a product may be used according to the manufacturer. The limit may apply to the air, substrate or product itself; check the measurement conditions.
At higher temperatures, many two-component products react faster. Working time may become much shorter, making large areas harder to finish neatly. Some products are also more prone to bubbling or uncontrolled curing. Maximum application temperature is not the same as heat resistance after curing.
- 120 °C
- Net contents
- 2-metre roll
