Product description

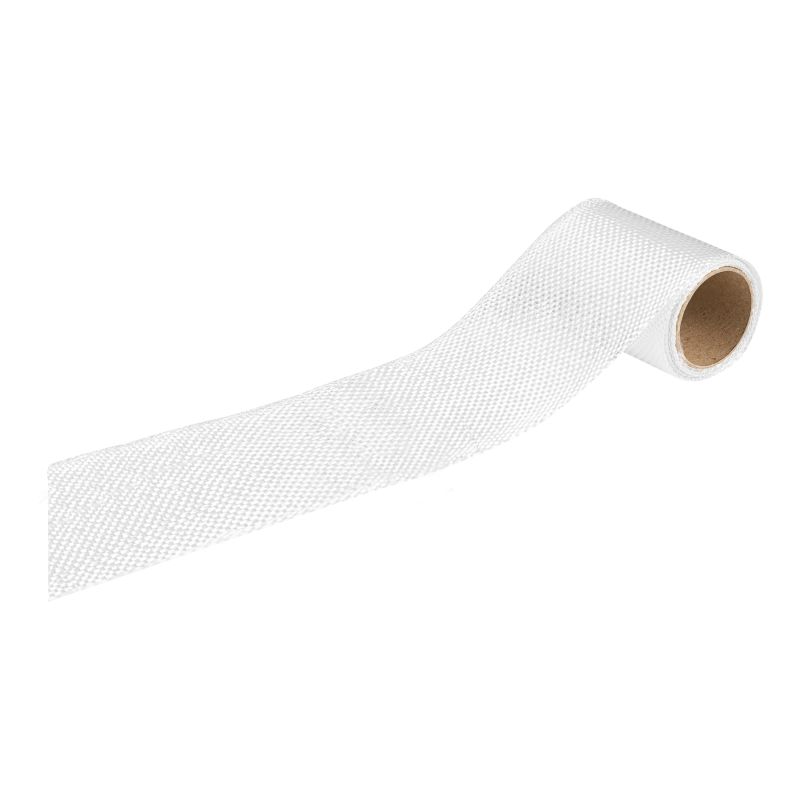

Glass fibre tape is a narrow, tightly woven glass fabric that is highly suitable for local repairs and reinforcement. This version is 10 cm wide and can be easily used with epoxy resin, polyester resin and vinylester resin.
After lamination, the resulting layer thickness is approximately 0.35 mm, with an average resin consumption of around 28 grams per linear metre. Thanks to its stable weave structure, the glass fibre tape can be laminated smoothly onto flat surfaces without wrinkling. This results in a neat, even finish, particularly when used with epoxy resin.
Thanks to its narrow width, this glass fibre tape is also highly suitable for finishing and reinforcing corners, seams and edges.
Applications of glass fibre tape
Glass fibre tape is suitable for applications including:
- Small repairs and local reinforcements.
- Corner and edge reinforcement.
- Wrapping pipes, frames and profiles.
Specifications
Weight: 200 gr/m2
Weave type: plain weave
Fabric width: 100 mm
Compatible resin systems: polyester resin, vinyl ester resin and epoxy resin
Thickness after hand lay-up: 0.35 mm
Resin consumption during hand lay-up: approx. 28 gr per linear metre (273 gr/m2)
Packaging:
- 5 linear metres
- 20 linear metres
- 100 linear metres (full roll)
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA000058
-
The materials, substrates or tasks a product is intended for. A general claim such as 'suitable for plastics' does not mean it works with every type of plastic; the specific substrate and its preparation still matter.
- Polyester, Epoxy, Vinylester
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.
- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).
- Plain
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Glass fabric
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 100 mm
-
Resin consumption indicates how much resin is required to properly wet out a reinforcement material. It may be stated in g/m² (grams per square metre), g/m for narrow fabric tapes or as resin quantity relative to dry fibre weight. Actual use depends on fibre type, areal weight and laminating method.
- Approximately 28 g/m (273 g/m²; hand lay-up)
-
Hand lay-up laminate thickness is the estimated thickness of one reinforcement layer after it has been impregnated with resin and consolidated with a roller. It is usually expressed in millimetres (mm). More layers produce a thicker laminate, but the final thickness also depends on fibre weight, resin uptake and consolidation.
- 0.35 mm
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 200 g/m²
- Net contents
- 5 m
