Square Glass Fabric 600 gr/m2
At a glance
- Low resin absorption
- For panel stiffness
- Very good wetting
Fast delivery throughout Europe
Secure payment with PayPal, Mastercard, Visa and more
4.7 out of 5 stars on Trusted Shops
Product description

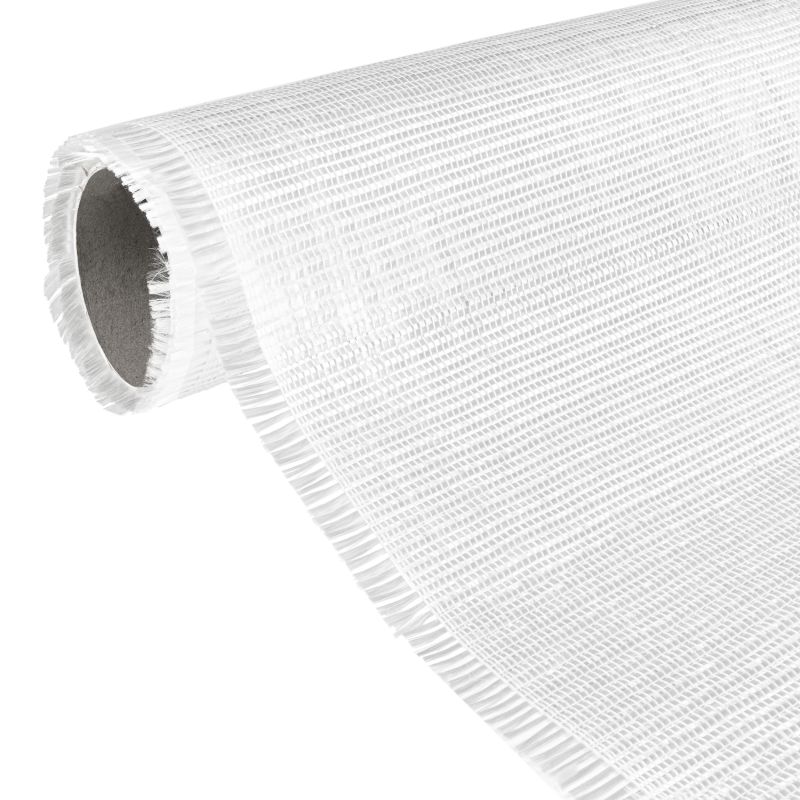

Square glass fabric 600 gr/m2 is a high-quality heavy fabric often used for building boats, surfboards, longboards, skis and much more. The fabric consists of two layers of unidirectional fibres: one along the length of the roll and one across the width. This provides excellent compressive and tensile strength.
The advantage of this square glass fabric is that it allows for a light, yet very stiff construction. Due to the tight fibre alignment, resin absorption is minimised, which improves efficiency and strength of the laminate. Square glass fabric offers a high flexural strength and results in a thickness of 0.78 mm after lamination and curing. The fabric is easy to laminate with epoxy, polyester and vinylester, with a resin absorption of approximately 495 gr/m2.
Square glass fabric is also available in a lighter variant: Square Glass Fabric 400 gr/m2.
Specifications
| Application method | Layer thickness | Resin consumption |
| Hand lay-up | 0.78 mm | approx. 549 gr/m2 |
| Wet Bagging | 0.55 mm | approx. 312 gr/m2 |
| Vacuum injection | 0.52 mm | approx. 288 gr/m2 |
Weight: 600 gr/m2
Weave type: square 0/90
Width: 127 cm
Compatible with: polyester resin, vinylester resin and epoxy resin
Packaging:
- 1 lm: 127 cm x 1 lm (1.27 m2)
- 5 lm: 127 cm x 5 lm (6.35 m2)
- 20 lm: 127 cm x 20 lm (25.4 m2)
- 50 lm: 127 cm x 50 lm (63.5 m2), roll-packed
Delivery:
- 1 m2, 5 m2 and 20 m2 roll-packed in a box
- 50 metres, roll-packed and foil-wrapped
Product properties
The key technical properties clearly listed in one place.
- Article number
- GLA000458
-
The materials, substrates or tasks a product is intended for. A general claim such as 'suitable for plastics' does not mean it works with every type of plastic; the specific substrate and its preparation still matter.
- Polyester, Epoxy, Vinylester
-
Fabric or reinforcement type describes how the fibres are arranged. This affects how easily the material drapes over a shape and which directions it mainly reinforces.
- Plain weave (square weave): the yarns pass alternately over and under each other. The fabric is stable and works well on flat or gently curved surfaces.
- Twill weave: recognisable by its diagonal pattern. It is more flexible than plain weave and drapes more easily over curves.
- Unidirectional reinforcement (UD): the fibres run mainly in one direction, usually marked 0°. It provides reinforcement primarily along that direction.
- Multiaxial reinforcement: fibres are arranged in several directions, for example biaxial (+45°/-45°), Square (0°/90°) or triaxial (0°/+45°/-45°). Fibre bundles are normally held together by stitching rather than a conventional weave.
Note: a Square reinforcement (0°/90°) is not the same as a plain-woven square fabric. Also consider fibre type and areal weight (g/m²).

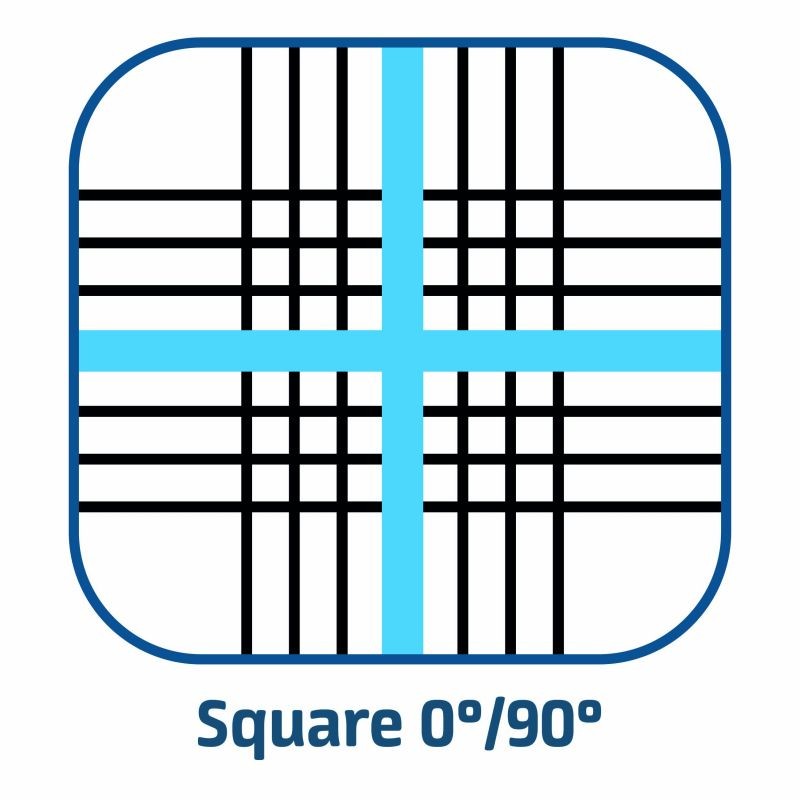

- Square (0°/90°)
-
The technical product category, such as primer, resin, hardener or cleaner. It explains the product's purpose and helps you find other products with a similar function.
- Glass fabric (special)
-
The measurement across a product from one side to the other, for example for rolls, panels or fabrics. With rolled materials, the usable width may differ from the overall width.
- 1.270 mm
-
The parts and accessories supplied as standard, such as a complete set of components, separate accessories or a machine with attachments. Product photographs may also show items that are not included.
- 1 m², 5 m² and 20 m² roll-packed in a box
-
Areal weight is the weight of one square metre of dry reinforcement, expressed in g/m² (grams per square metre). For example, 200 g/m² glass fabric contains 200 grams of dry fibres per m², without resin. Areal weight helps with reinforcement selection and resin consumption estimates, but it is not the final laminate thickness.
- 600 g/m²
