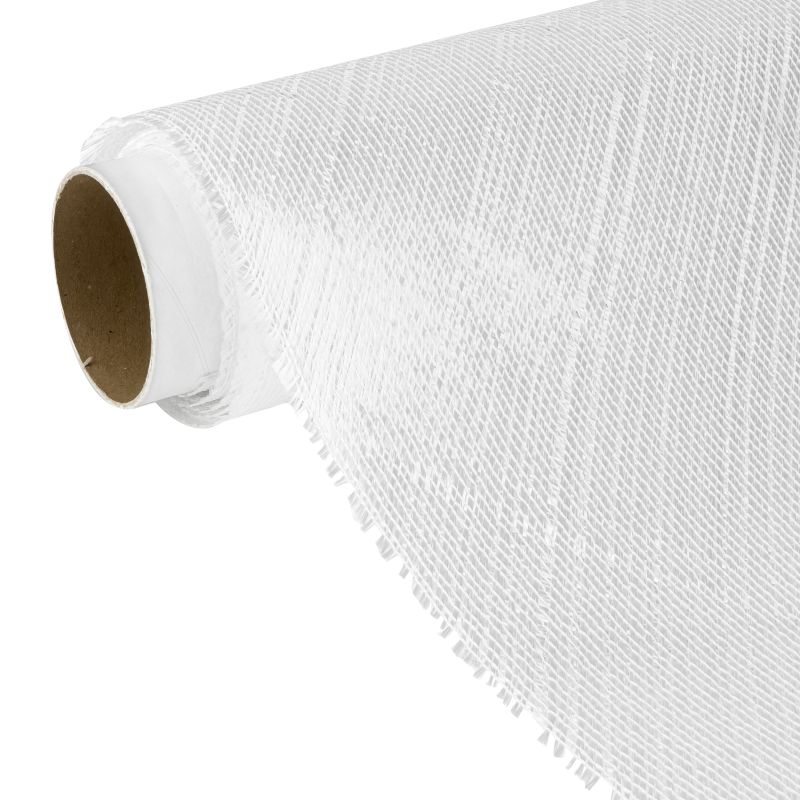

Triaxial Glass Fabric 400 gr/m2
- Low resin absorption
- For torsional stiffness
- For tensile strength
Triaxial glass fabric 400 gr/m2 is a high quality fabric. The glass fabric is used for building boats, surfboards, longboards, skis and similar applications. After lamination, the triaxial fabric has a thickness of 0.53 mm. The product is easy to use and consumes approximately 370 grams of resin per square metre.
What is Triaxial glass fabric?
Triaxial glass fabric consists of 3 unidirectional fabrics that are connected at an angle of 0, -45 and +45 degrees. This gives the fabric an optimal compressive and tensile strength. The advantage of multiaxial glass fabric is that it can be used to create a lightweight yet rigid construction. Resin absorption is minimised because the fibres lie close together.
Triaxial glass fabric provides a high bending strength, but also improves the torsional rigidity of constructions.
Product properties
| Application method | Layer thickness | Resin consumption |
| Hand lamination | 0.53 mm | approx. 370 gr/m2 |
| Wet Bagging | 0.37 mm | approx. 210 gr/m2 |
| Vacuum injection | 0.35 mm | approx. 194 gr/m2 |
Weight: 400 gr/m2

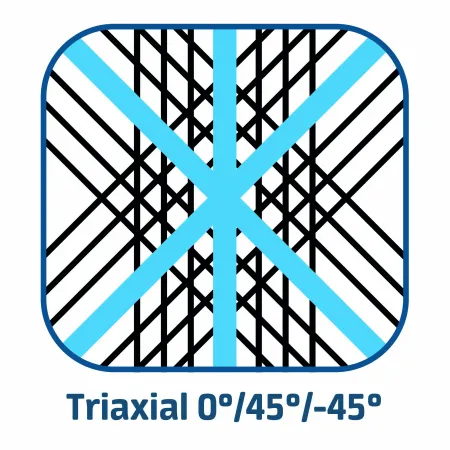

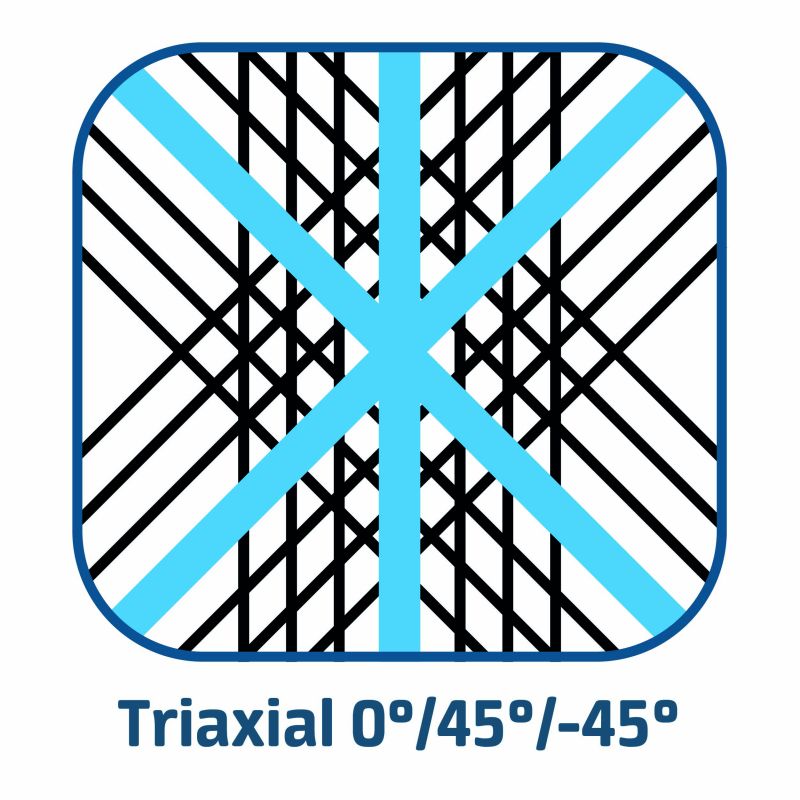

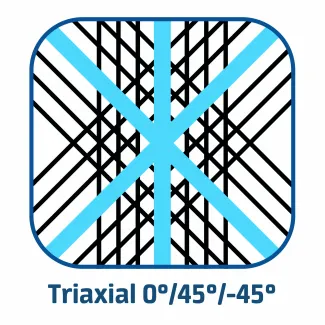

Weave type: triaxial (0/+45/-45)
Width: 127 cm
Suitable for: polyester resin, vinylester resin and epoxy resin
Packaging:
- 1 lm: 127 cm x 1 lm (1.27 m2)
- 5 lm: 127 cm x 5 lm (6.35 m2)
- 20 lm: 127 cm x 20 lm (25.4 m2)
- Roll: 127 cm x 50 lm (63.5 m2)
Delivery:
- 1 m2, 5m2 and 20 m2 roll-packed in box
- 50 metres roll-packed in foil
We have a number of recommendations for working safely with polymers. At Polyestershoppen you will not only find the polymers themselves, but you can also purchase all the protective equipment you need from us. If you have any doubts or questions, please contact our customer service. We can give you advice on how to work safely with polymers.
